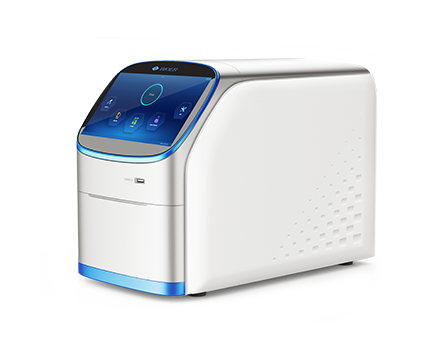

Based on the consistent superior quality of LineGene family, QuantGene 9600 has adopted mature thermoelectric refrigeration technology, brand-new light source and light path design. The unique constant-current power and 6-zone independent temperature control method ensure more rapid, correct and stable fluorescence quantitative analysis of the product, while maintaining its excellent performance in low energy consumption.
The product is modularized with various configurations to choose from. Meanwhile, it has been added with functions including independent temperature control, low-temperature storage of sample at 4℃, and automatic dehumidification.

Compared with last-generation equipment, it will comprehensively realize automatic gain setting and improve user experience. In the meantime, system customization is available for satisfying requirements of various clients. Thus, it will fully meet the demand of scientific research and clinical diagnosis.

• Top imaging photoelectric detection:

  Top imaging technology was adopted to collect 96-well fluorescent signals without detection time difference. Fast detection, single channel detection need only 1 second;
  A new array of flat-field light source can greatly improve the excitation optical effect and enhance the fluorescence signal；
  The excitation and detection channels adopt independent filter wheels, which can cope with secondary excitation detection experiments without expanding the channel, such as the application of double hybrid probe；
  The cluster conduction design of high-end optical fiber is adopted to improve the fluorescence signal strength, reduce the optical conduction loss, and eliminate the edge optical path difference without calibration.

• 6 partition thermal cycling module:

  The use of 72 series long life semiconductor refrigeration (Ferrotec Peltier), its life is three times higher than that of traditional TE;
  Micro heat pipe array technology, improve the heat conduction efficiency;
  6 partition accurate and independent temperature control, improve the reaction speed;
  High temperature uniformity, fast ramping speed;


• Intelligent adjustable hot cover：

  Built-in high sealing hot cover to avoid reagent volatilization;
  The hot cover can be automatically adjusted to fit various kinds of test tubes.


• Automatic pop-up sample bin: Automatic pop-up sample warehouse design, easy to operate.

• Full adaptable software system:Large touch screen software operation, new humanized operation interface, greatly improve customer’s experience;Equipped with mobile phone/tablet APP to realize remote operation and real-time monitoring by users;The new Ul design of international standards, to adapt to the mainstream market users at home and abroad operating habits;Flexible program setting, comprehensive analysis and reporting functions, all parameters can be stored;Intelligent software system, no need for debugging gain, wide range of linear analysis, good reproducibility of experimental results.
